    B SERIES CNC - B24 - 1HP SPINDLE - LARGE 2' X 4' - 110 V - UNIT ONLY

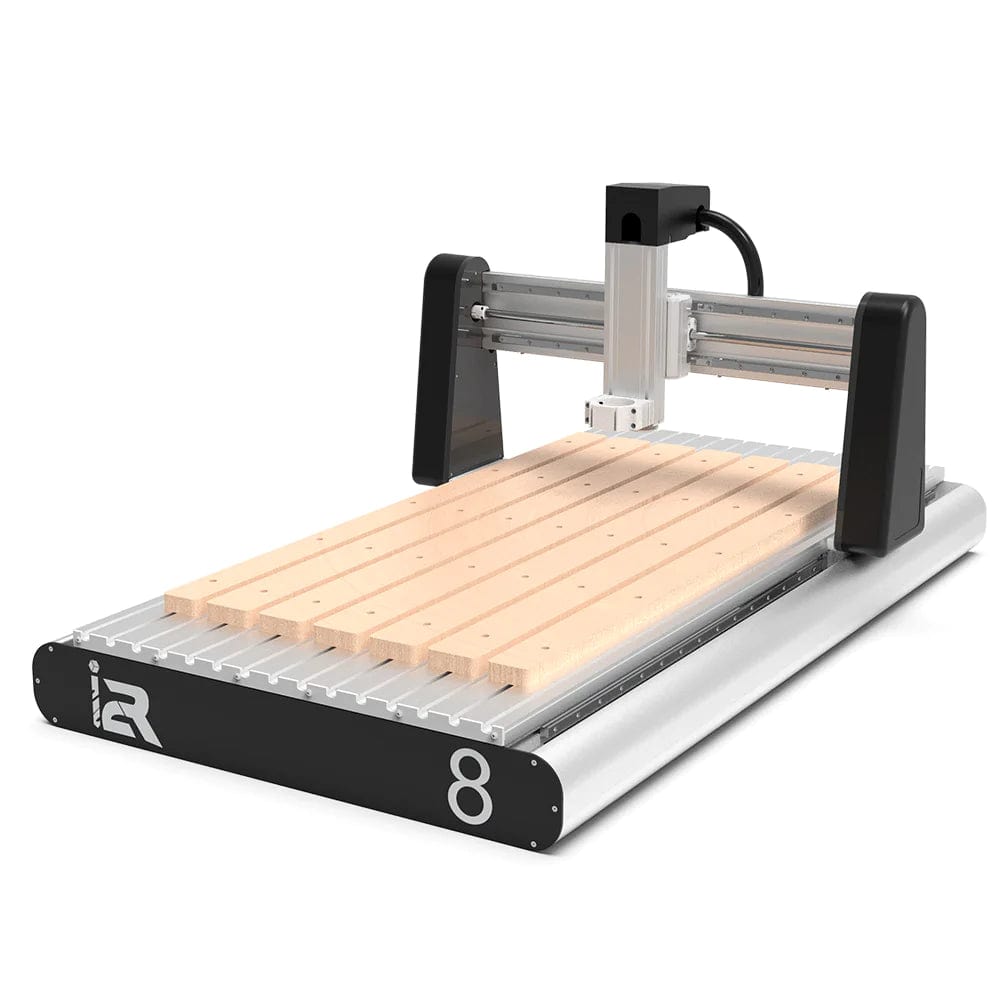

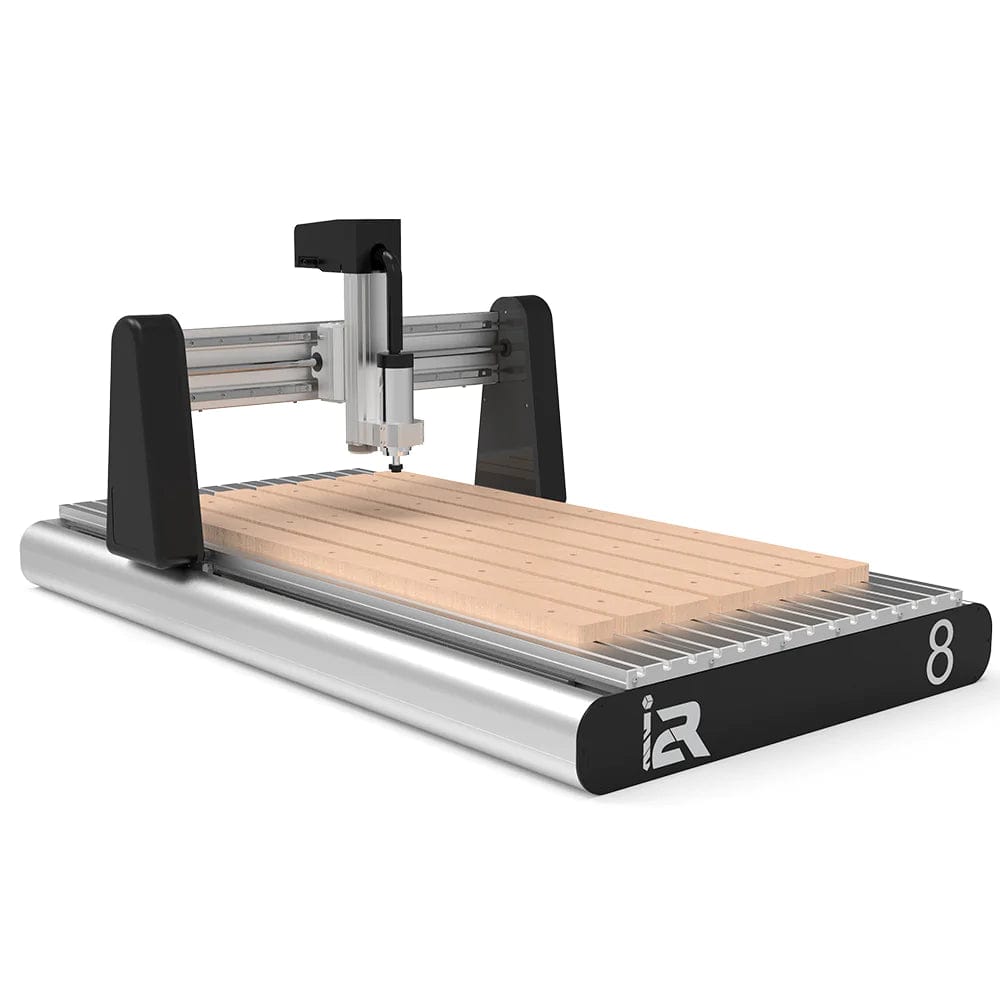

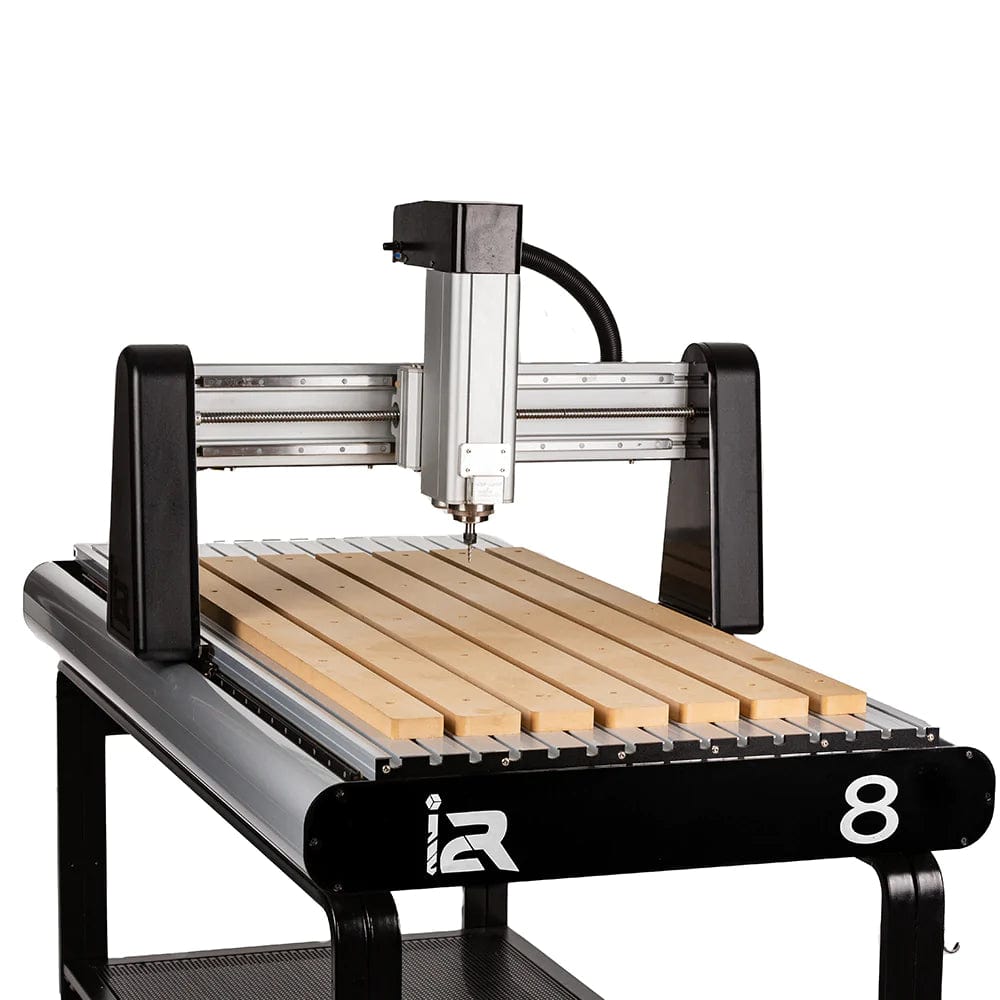

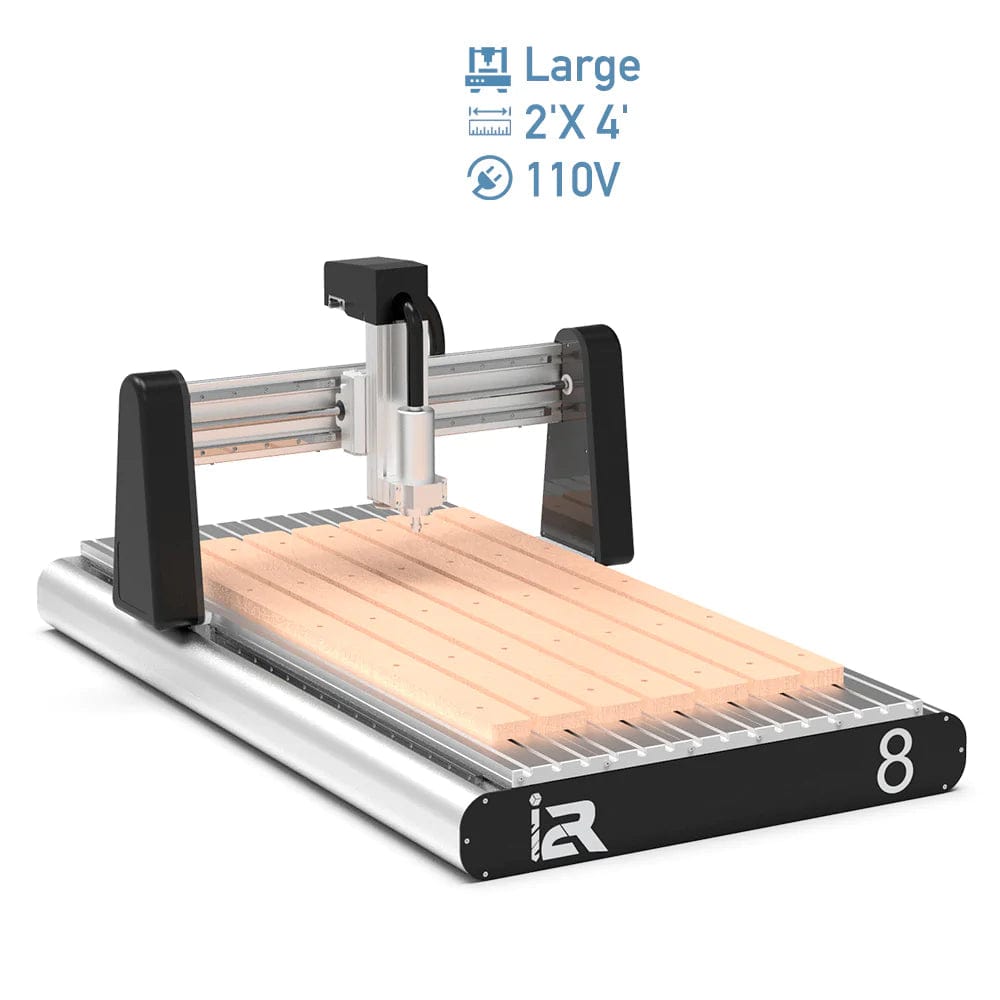

    The B24 CNC Machine is a robust crafting machine that makes no compromises on quality and efficiency. i2rCNC router series takes full advantage of its features and UCCNC software. Intuitive Touch screen, Real time 3d feedback during cuts. i2r CNC machines allow you to take full control of your CNC Machine.

    B SERIES CNC - B24 - 1HP SPINDLE - LARGE 2' X 4' - 110 V Product Features

    Easy to Assemble CNC Machine
    This CNC machine is very intuitive and easy to assemble, designed with comfort and ease of use to make sure you have maximum uptime out of the box.

    Efficiency in Mind
    The B24 Features a 1 HP Air-Cooled Spindle (110V) and makes its operation over a 24” x 48” work Envelope and equipped with 3-Axis CNC Table & Gantry to ensure maximum efficiency.

    Integrated MDF Spoilboard
    Integrated MDF Spoilboard to protect the router table from any damages.

    Lifetime Customer Service
    i2rCNC Experts are readily available for you and will have your back every time you need them for greater peace of mind and maximum uptime if you ever incur a problem.









    TECHNICAL SPECIFICATIONS

    TRAVELS:

    i2R B24

    • X axis: 610mm (24″)
    • Y axis: 1220mm (48″)
    • Z axis: 135mm (5.31″)

    SPINDLE:

    • Spindle Power: 1hp (1.5 W)
    • Spindle Type: Electro Spindle
    • Spindle Speed: 0-24,000 RPM

    MAXIMUM FEED RATE:

    • X-, Y-, and Z-Axis: 150 in./min

    POWER REQUIRED:

    • 115V, 50~60Hz, 13A, 1-Phase

    MACHINE SPECIFICATIONS:

    i2R B24

    • Table Size: 28.4″ x 37″
    • Machine Weight: 176 lbs
    • 5 1/2″ (139.0mm)

    LINEAR MOTION COMPONENTS:

    • Precision Linear Guideway X/Y/Z
    • Precision BallScrew X/Y/Z
    • BallScrew Diameter 15mm

    MACHINE CONSTRUCTION:

    • Machine Base: All Welded Steel Frame
    • Working Table: High Rigidity Aluminum Extrusion
    • Gantry Bridge: High Rigidity Aluminum Extrusion
    • Gantry Supports: Aluminum Billet Machined
    • BallScrew Diameter

    RESOLUTIONS & ACCURACY:

    • Positional Accuracy +/- 0.001″inc (.02mm)

    CONTROLLER:

    • UCCNC PC Control Software

    ACCESSORIES (INCLUDED):

    • Tool Touch Off
    • MDF Spoilboard
    • Wrenches
    • Collets 1/4″ and 1/8″
    • Ethernet Cable
