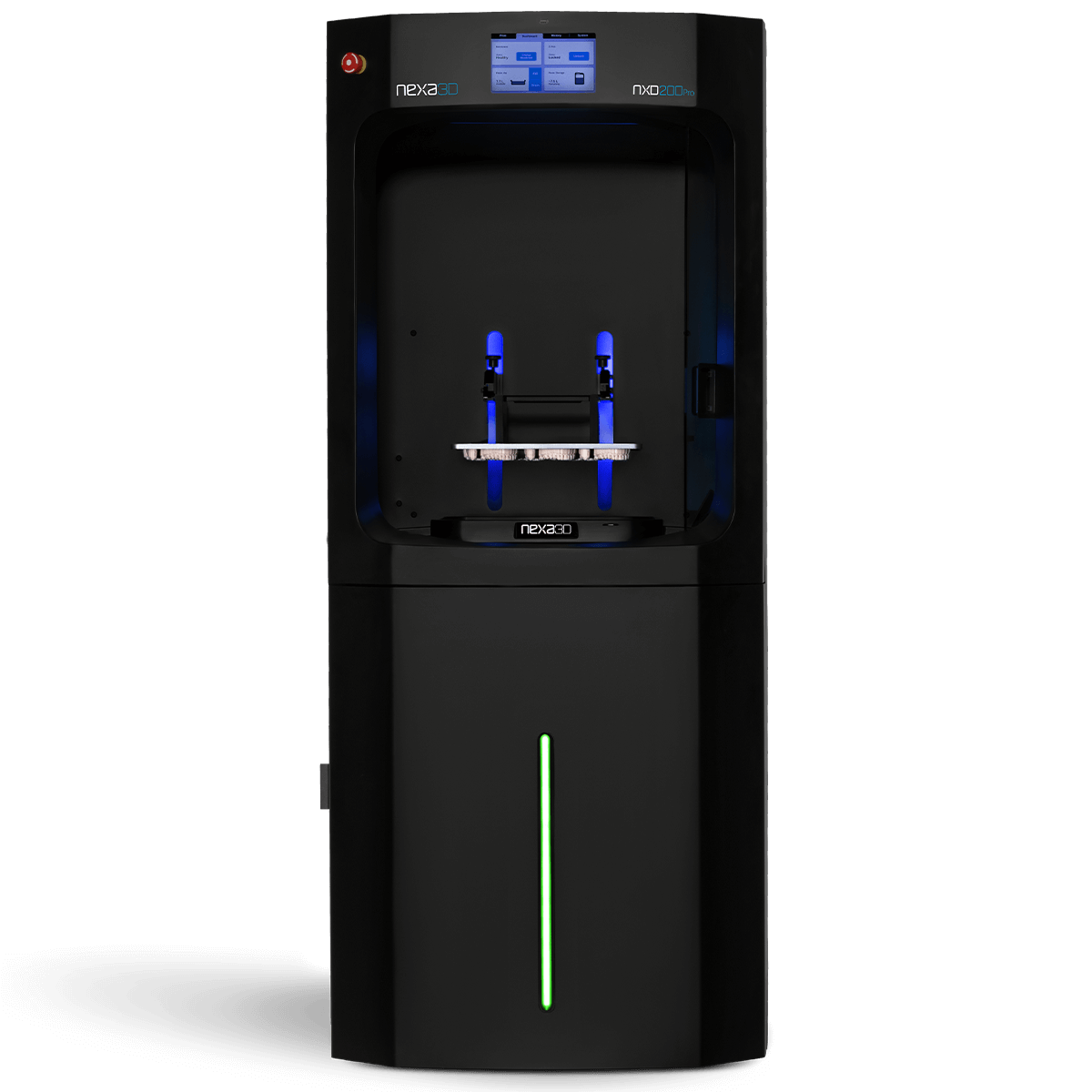

NEXA3D NXD200 Pro 3D Printer Ultrafast 3D Printer for Dental Applications

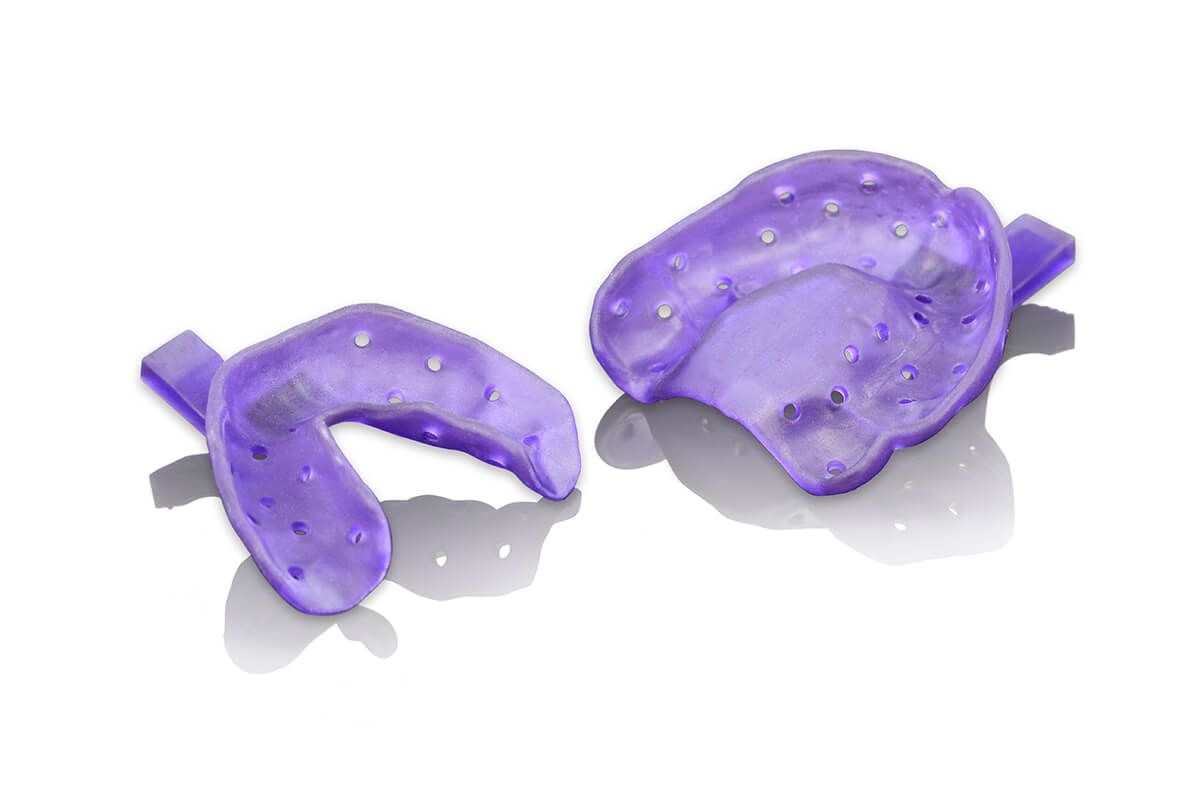

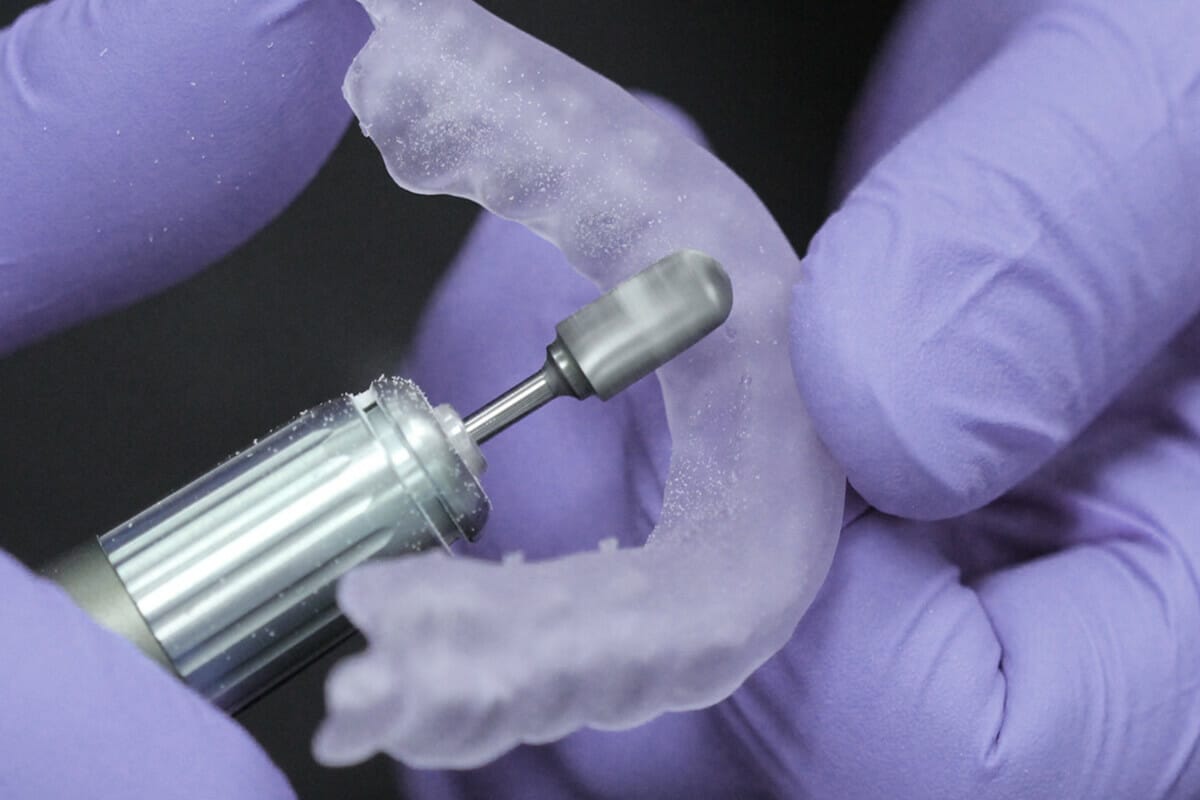

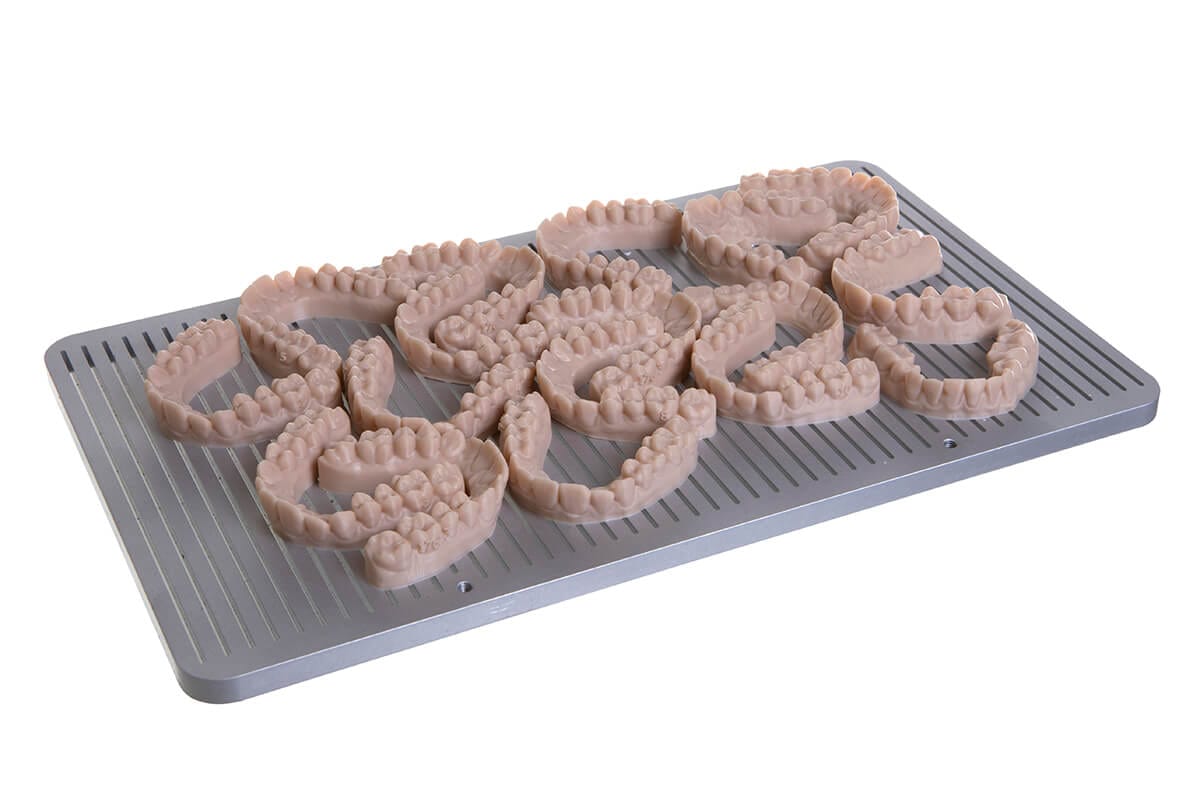

The NXD 200Pro is the perfect dental 3D printer for high throughput dental applications. With an unprecedented 8.5L build volume measuring 275 x 155 x 200 mm (10.8 x 6.1 x 7.8 inch) and patented LSPc technology. This dental 3D printer is ideal for dental resin models, splints, impression trays, occlusal night guards, and more. The superior speed and workflow is complemented by intuitive interfaces and ease of use, ideal for dental labs.
NEXA3D NXD200 Pro 3D Printer Product Features
A complete 3D printing solution superior in speed and workflow for large-scale dental production needs.
-
Large Build Plate Allows for High Throughput
The NXD 200Pro features 8.5L of build volume (measuring 10.8 x 6.1 x 7.8 in / 275 x 155 x 200 mm), an intelligent print optimization software, 4K resolution, and Nexa3D’s revolutionary patented LSPc technology. Thanks to its cutting-edge technology the NXD 200Pro provides isotropic printed parts, higher throughput, and lower cost per part making it the perfect 3D printing solution for any dental application.
-
Consistency with Every Build
Accuracy, uniformity and repeatability from edge to edge on the build platform.
-
Lab Ready + Modular Design
In addition to our highly reliable LSPc technology, the NXD 200Pro is crafted to be completely modular in design for easily interchangeable parts and technology upgrades eliminating hardware obsolescence.
-
Smart Integrated Workflow Software + Predictive Service
Nexa3D’s internally developed intelligent software connects our hardware and materials together into a powerful, user friendly system while providing a new era of predictive and prescriptive service. It’s as simple as pressing CRTL+P.
NEXA3D NXD200 Pro 3D Printer Specifications
Printer Hardware
|
Build Volume Material |
(xyz) 275 x 155 x 200mm (10.8 x 6.1 x 7.8 inch) |
|
Max Resolution |
4K resolution |
|
Pixel Pitch |
76.5 µm (0.0030 in) |
|
Wavelength |
405 nm |
|
Build Materials |
UV Curable Plastics: KeyModel Ultra, KeySplint Soft, KeyGuide, KeyTray |
|
Packaging |
5kg jerry can |
Operating Environment
|
Air Temperature |
20-25˚C (60-80˚F) |
|
Humidity |
RH below 70% |
|
Electrical |
NA Version : 100-120 VAC, 50/60 Hz, Single Phase, 8A (NEMA 15-5R) EU Version: 210-230 VAC, 50/60 Hz, Single Phase, 4A (CEE 7/7) |
Dimensions (WxDxH)
|
3D Printer crated |
990 x 990 x 1905mm (39 x 39 x 75 inch) |
|
3D Printer uncrated |
710 x 710 x 1675 mm (28 x 28 x 66 inch) |
Weight
|
3D Printer crated |
250 kg (550lb) |
|
3D Printer uncrated |
160kg (350lb) |
More Information
|
Materialise MagicsPrint for Nexa3D Software |
Full featured toolset including auto aorientation and nesting, auto support generation, mesh repair wizard, and part editing |
|
NexaX v1 Software |
Easy build processing and Remote Printer Management: submission and queues, job statisitics. |
|
Connectivity |
GigaBit Ethernet RJ-45 & WiFi Interface |
|
Client Hardware Recommendation |
‘- 3 GHz multiple core processor with 16+ GB RAM - NVIDIA GTX 1060 or AMD Radeon RX 480 or better graphics with 4+ GB RAM - 3 GB available HDD space, additional 10GB for files / cache |
|
Client Operating System |
Windows 10, 64bit |
|
Input Data File Formats Supported |
.stl, .3mf |
|
Post-Processing |
Ships with basic part finishing tools accessory kit. - Max build requires wash basin & cure chamber with 300 x 180 x 480mm (12 x 7 x 19 in) capacity - Requires UV curing unit capable of > 2mW/ cm2 and 60°C (ideal 20mW/cm2 and up to 120°C) |
